Professional Stereo Inspection

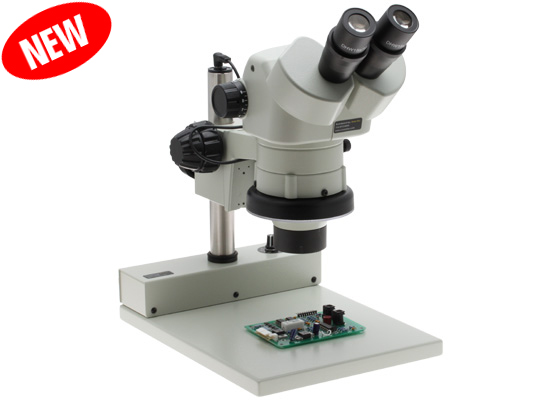

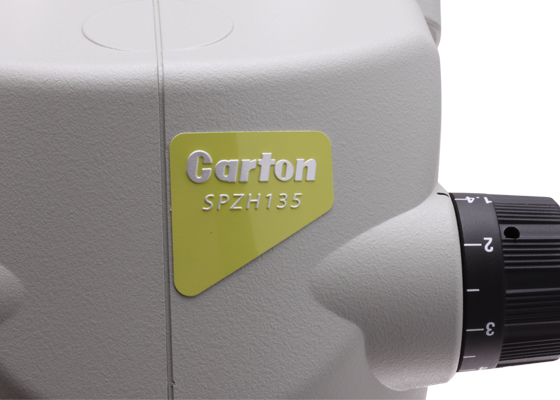

SPZH-135 Stereo Zoom Binocular Microscope
Designed for detailed inspection of small parts, electronics, and precision assemblies, the SPZH-135 provides continuous stereo zoom magnification, a constant working distance, and clear binocular viewing on a stable illuminated pole stand.
Part #26800B-351 | 21×–135× Zoom | PLED Stand
High-Magnification Stereo Viewing
The included 15× wide-field eyepieces provide continuous magnification from 21× to 135× while maintaining an 84 mm working distance. Multi-coated optics and a straight optical path support clear, undistorted viewing for inspection, assembly, and precision rework.
Adjustable for Operator Comfort

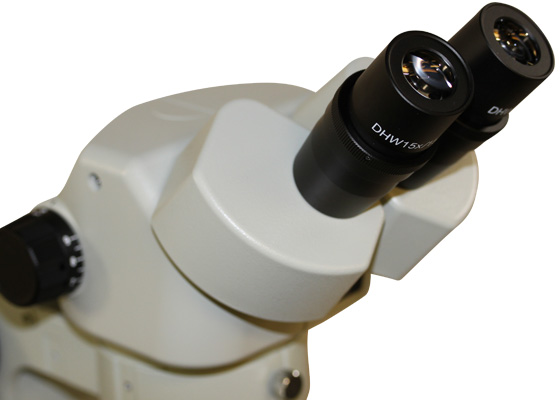

The binocular head uses 45-degree inclined high-eye-point eyepieces, individual diopter adjustment, and an adjustable 50–74 mm interpupillary range. The PLED pole stand combines coarse and fine focusing with an integral dimmable LED ring light.
Key Features
✓ Continuous 21×–135× zoom magnification
✓ 84 mm constant working distance
✓ 15× wide-field eyepieces inclined at 45°
✓ Diopter adjustment on both eyepiece tubes
✓ Dimmable integral LED ring light
✓ Coarse and fine focusing
✓ Multi-coated Greenough optical system
Specifications
| Part Number |
26800B-351 |
| Microscope Body |
Binocular |
| Standard Eyepieces |
15× high-eye-point wide field, inclined at 45° |
| Magnification |
21×–135× continuous zoom; up to 180× with optional 20× eyepieces |
| Working Distance |
84 mm / 3.3 in |
| Interpupillary Adjustment |
50–74 mm / 1.96–2.91 in |
| Diopter Adjustment |
+5.6D to −7.2D on both eyepieces |
| Optical System |
Greenough, multi-coated optics |
| Stand and Focus |
Pole stand with coarse and fine focus |
| Illumination |
Integral dimmable LED ring light |
| Base Dimensions |
220 × 284 mm / 8.66 × 11.18 in |
| Pole Height |
250 mm / 9.84 in |
| Weight |
15 lb |
| Warranty |
Minimum 12-month manufacturer’s warranty |
Package Includes
| Microscope |
SPZH-135 binocular microscope body with 15× eyepieces |
| Stand |
PLED pole stand, Part #26800B-512 |
| Illumination |
Integral dimmable LED ring light |
| Included Accessories |
Dust cover, rubber eye guards, and tension-control pin |
Optional Accessories
| 20× Eyepieces |
Extends the system’s magnification range to 28×–180× |
| Protective Lens Cover |
Optional protective cover for the microscope lens |
| 0.5× Auxiliary Lens |
Optional auxiliary lens for applications requiring lower magnification |
Complete Illuminated Stand Package
Part #26800B-351 includes the SPZH-135 binocular microscope body and the PLED pole stand with integrated dimmable LED illumination. Optional 20× eyepieces and auxiliary optics are sold separately.
