Compact Stereo Inspection

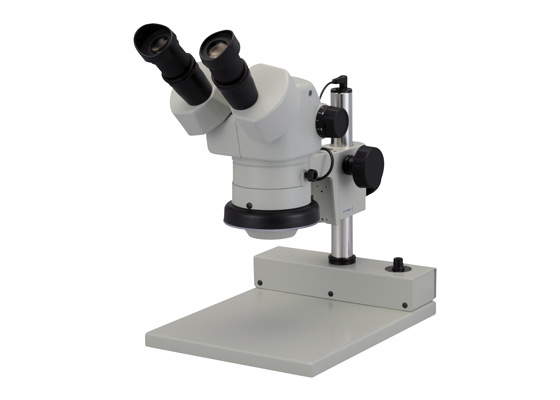

SPZ-50 Stereo Zoom Binocular Microscope
A professional stereo inspection microscope with high-grade optics, continuous zoom magnification, a generous working distance, and a compact PLED pole stand with built-in adjustable illumination.
Part #26800B-371 | 6.7×–50× Zoom | 60-LED PLED Stand
Clear Three-Dimensional Viewing
The SPZ-50 combines a 7.46:1 zoom ratio with 10× wide-field eyepieces to provide continuous 6.7×–50× magnification. Its unibody construction, multi-coated optical components, and Greenough optical system support sharp three-dimensional images across the field of view.
Illuminated Compact Stand
The PLED pole stand includes a 60-LED ring light with dimmer control and a focus mount with coarse and fine adjustment. Its compact 220 × 284 mm base saves bench space while the 108 mm working distance leaves room for inspection tools and component handling.
Key Features
✓ Continuous 6.7×–50× zoom magnification
✓ 108 mm working distance
✓ 10× wide-field eyepieces inclined at 45°
✓ 60-LED ring light with dimmer control
✓ Coarse and fine focus adjustment
✓ Multi-coated Greenough optics
✓ Compact PLED pole stand included
Specifications
| Part Number |
26800B-371 |
| Microscope Body |
Binocular, unibody construction |
| Eyepieces |
10× wide field, FN 23, inclined at 45° |
| Objective Lens |
0.67×–5.0× |
| Magnification |
6.7×–50×; up to 200× with optional optics |
| Working Distance |
108 mm / 4.25 in |
| Zoom Ratio |
7.46:1 |
| Field of View |
34.3–3.6 mm |
| Interpupillary Distance |
52–75 mm |
| Diopter Adjustment |
±7.2D on both eyepiece tubes |
| Optical System |
Greenough, multi-coated optics |
| Illumination |
60 white LEDs with dimmer control |
| Stand and Focus |
PLED pole stand with coarse and fine focus |
| Base Dimensions |
220 × 284 mm |
| Pole Height |
250 mm / 9.84 in |
| Weight |
15 lb |
| Warranty |
Minimum 12-month manufacturer’s warranty |
Package Includes
| Microscope |
SPZ-50 binocular microscope body with 10× eyepieces |
| Stand |
PLED pole stand, Part #26800B-512 |
| Illumination |
Built-in 60-LED ring light with dimmer control |
| Included Accessories |
Dust cover, rubber eye guards, and tension-control pin |
Optional Accessories
| Auxiliary Lenses |
0.75×, 1.6×, and 2× |
| Eyepieces |
10×, 15×, 20×, and 10× with scale |
| Optical Protection |
Protective lens cover |
| Lighting Accessory |
Ring-light adapter |
Microscope and Illuminated Stand Included
Part #26800B-371 includes the SPZ-50 binocular microscope body and the PLED pole stand with its built-in 60-LED illumination, dimmer control, and coarse-and-fine focus mount.
