Portable USB Inspection
Mighty Scope 5M USB Digital Microscope
Inspect, capture, measure, and document fine details directly on a computer. This compact 5-megapixel USB microscope combines adjustable magnification, controllable LED lighting, a snapshot trigger, and image-analysis software in one portable inspection package.
Part #26700-209 | 5 MP CMOS Sensor | USB 2.0

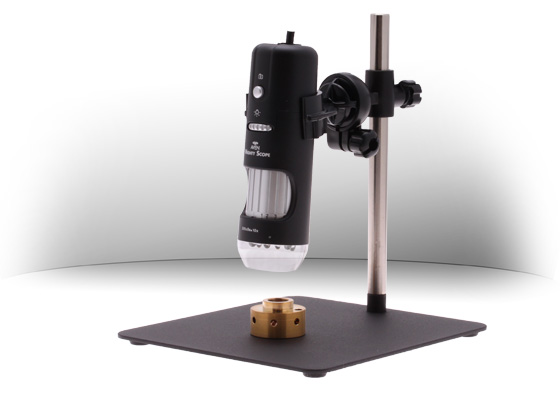

Handheld or Stand-Mounted Inspection
Use the lightweight microscope by hand for quick examinations or place it in the included adjustable metal stand for stable inspection and measurement. Focus and magnification are controlled by positioning the microscope relative to the workpiece.
Capture, Measure, and Compare
The included imaging software supports still-image capture, video recording, measurement, annotation, freeze-frame viewing, and comparison of live and stored images. A built-in Microtouch shutter provides convenient image capture while the microscope is handheld or mounted.
Key Features
✓ 5-megapixel color CMOS sensor
✓ 10×–50× optical magnification
✓ Up to 200× digital magnification
✓ Six white LEDs with brightness control
✓ Built-in Microtouch snapshot trigger
✓ USB-powered computer connection
✓ Adjustable metal stand included
Specifications
| Part Number |
26700-209 |
| Image Sensor |
1/4-inch color CMOS, 5.0 MP |
| Signal Output |
USB 2.0 |
| Magnification |
10×–50× optical; up to 200× digital |
| Video Format |
AVI |
| Frame Rate |
15 fps at 2048 × 1536; 30 fps at 1024 × 768 or 640 × 480 |
| Lighting |
Six white LEDs with brightness control |
| Working Distance |
112 mm at 10×; 42 mm at 20×; 19 mm at 30×; 8.5 mm at 40× |
| Power |
5 VDC through USB port; 260 mA average |
| Microscope Dimensions |
111 mm long × 34.5 mm diameter; 1.8 m cable |
| Microscope Weight |
113 g |
| Warranty |
Two years against manufacturing defects |
Package Includes
| Digital Microscope |
Mighty Scope 5M USB digital microscope |
| Stand |
Adjustable metal stand with 200 × 200 mm base and 300 mm pole |
| Software |
Image-capture and measurement software |
| Documentation |
Operating manual |
Computer Required
The Mighty Scope displays images through a connected computer and does not include a monitor. The current listing identifies Windows XP, Vista, and 7 plus Mac OS X 10.6 or later. Confirm software compatibility before purchase if you use a newer operating system.
Need Help Choosing an Inspection System?
Speak with an APE specialist about magnification, working distance, software compatibility, or microscope accessories.
Call 800-822-8646
|
