Fume Extraction Twin Hose High Flow Low dB 115VAC | Part#9700-5412

(0)
Write review
 In stock
$963.65
Product Overview
Delivery and returns

Description:

Bench Fume Extraction

Twin Hose High Flow Fume Extractor — 115 VAC

APE part 9700-5412 provides high flow extraction through three filter stages with two suction hoses and an operating noise level below 55 dB.

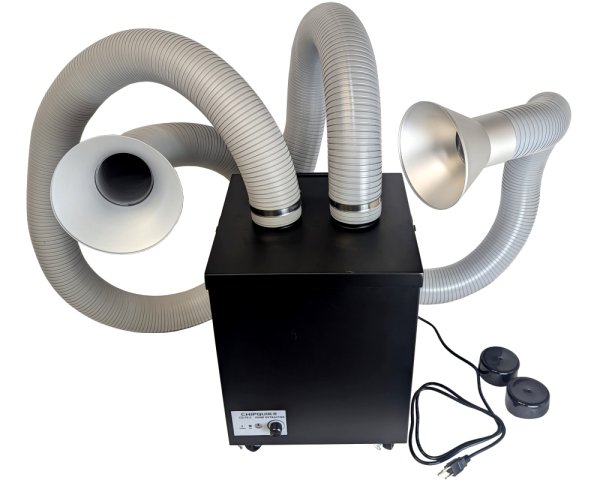

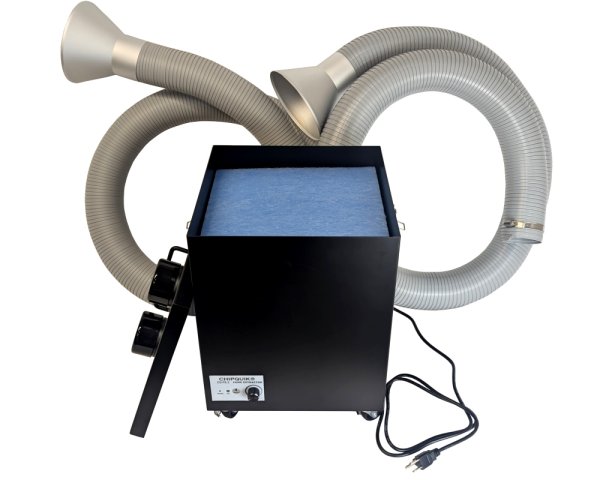

APE 9700-5412 twin hose high flow fume extractor

Product Overview

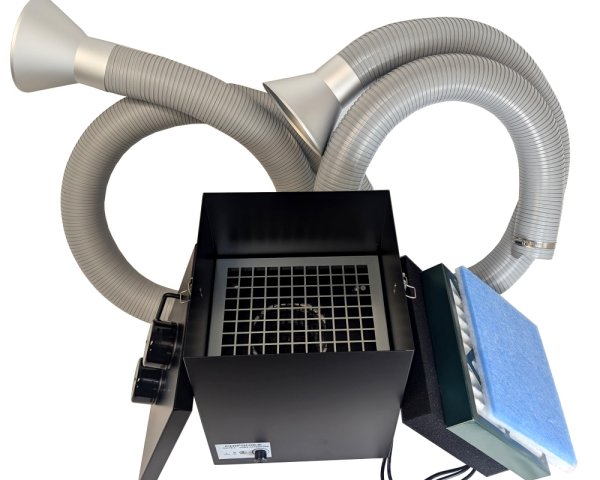

The APE 9700-5412 is a high flow fume extractor with three filter stages, airflow rated at 350 m³/h (206 CFM), and a listed noise level of less than 55 dB.

Use one or both of the two included suction hoses. A suction port cover blocks the unused port when operating with a single hose. Each hose is 7 ft (2,134 mm) long.

Key Features

  • Three-stage filtration and 350 m³/h (206 CFM) rated airflow
  • Noise level below 55 dB
  • Two included 7 ft suction hoses for one- or two-hose operation
  • Included cover closes the unused suction port during single-hose operation

Specifications

APE Part Number 9700-5412 (listed as APE-9700-5412)
Input Voltage 100–120 VAC
Frequency 60 Hz
Rated Output Power 0.32 kW
Fuse T3.15A
Airflow 350 m³/h (206 CFM)
Filter Stages 3
Noise Level <55 dB
Hoses 2 included; 7 ft (2,134 mm) long each
Hose Inside Diameter 2.95 in (75 mm)
Hose Outside Diameter 3.25 in (82.6 mm)
Hose Wall Thickness 0.15 in (3.8 mm)
Case Dimensions (L × W × H) 31 × 31 × 46 cm (12¼ × 12¼ × 18⅛ in)
Weight 20 kg (44 lb)
Included Accessories 2 suction hoses and suction port cover
