Trident Marine Grade Rework System 115VAC – Base Package | Part #3500-1500

(0)
Write review
 In stock
$5,599.33
Product Overview
Delivery and returns
  • Model
  • APE-3500-1500

Description:

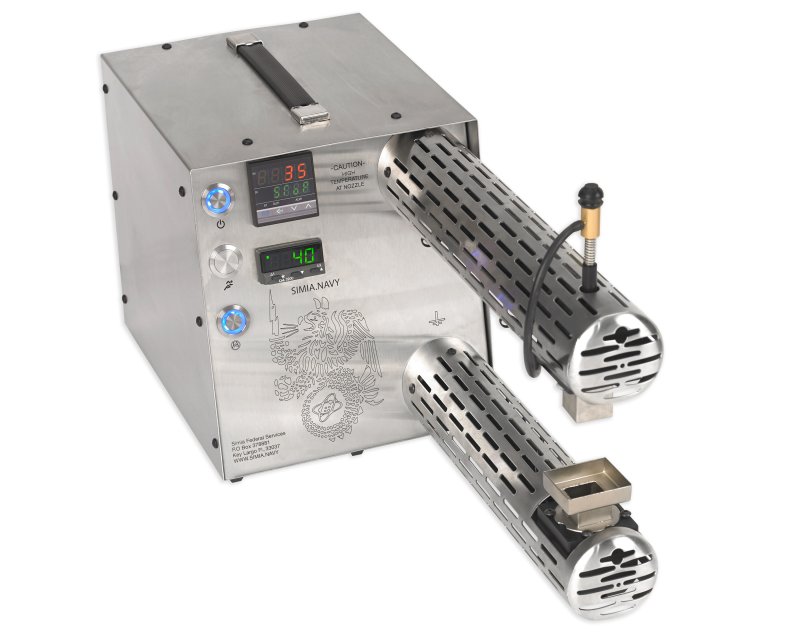

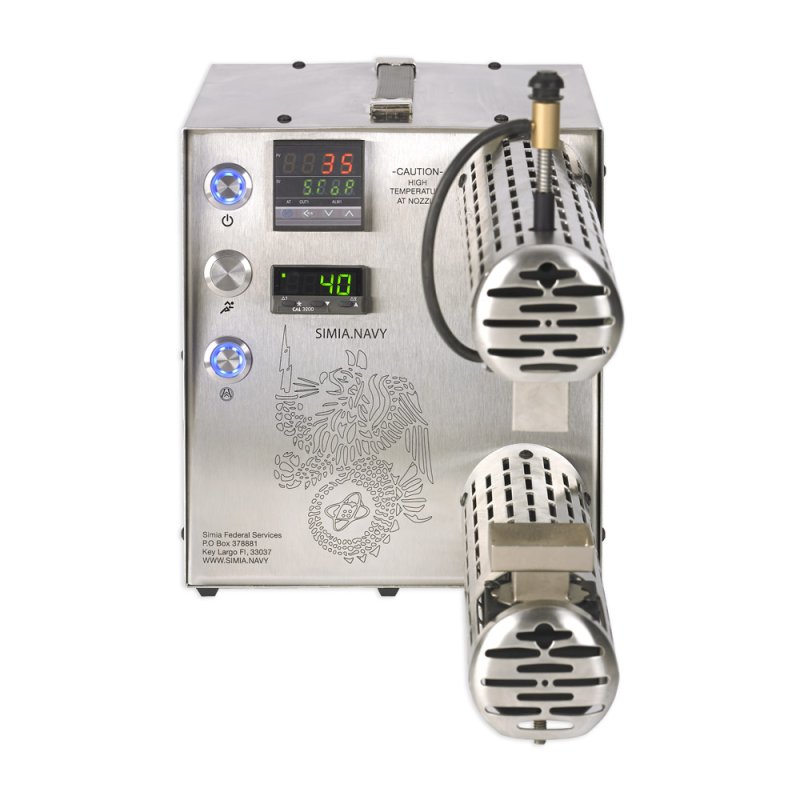

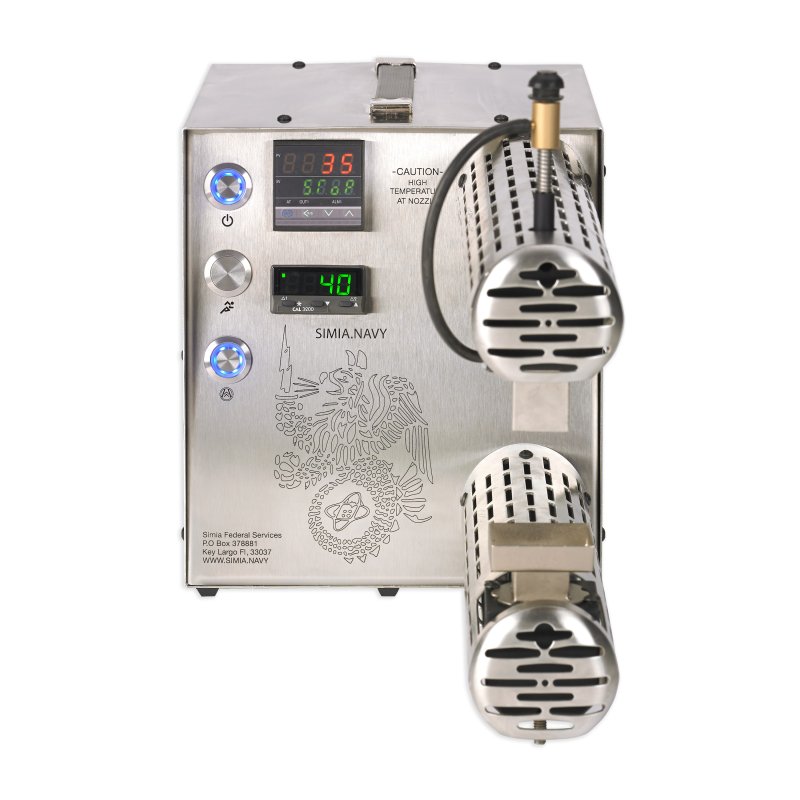

APE Trident 115V Marine-Grade SMT Rework System

The APE Trident is a self-contained benchtop SMT rework and repair system designed for demanding professional, military, and marine electronics applications. Its stainless-steel chassis and 20G impact rating provide a durable platform for controlled component removal and replacement.

Upper and lower heating provide a precisely controlled ramp-and-soak thermal profile for reworking surface-mount components. Simple push-button operation helps technicians perform consistent and repeatable rework across a wide range of SMT and RoHS assemblies.

Controlled Upper and Lower Heating

The Trident combines upper and lower heating to deliver controlled thermal energy to the circuit-board assembly. Its ramp-and-soak profile supports repeatable SMT component removal and replacement while helping technicians manage heat across the board.

Marine-Grade Stainless-Steel Construction

A full stainless-steel chassis provides a durable, corrosion-resistant platform for demanding working environments. The system is rated for impacts up to 20G and is designed to provide dependable professional rework service.

Simple, Repeatable Operation

Single-button operation simplifies the rework process and allows technicians to use a controlled thermal profile without managing an unnecessarily complex interface.

Professional SMT Applications

The Trident is designed for removing and replacing a broad range of surface-mount components, including components used on RoHS assemblies. Contact APE to confirm the correct nozzle and process configuration for your circuit board.

Key Features

  • ✓ Upper and lower heating
  • ✓ Controlled ramp-and-soak profile
  • ✓ Full stainless-steel chassis
  • ✓ Marine-grade construction
  • ✓ Rated for impacts up to 20G
  • ✓ Simple push-button operation
  • ✓ 2,450-watt power rating
  • ✓ 110–125VAC operating range
  • ✓ Suitable for SMT and RoHS assemblies
  • ✓ Three rework nozzles included

Product Specifications

Manufacturer APE
Product Trident SMT Rework System
APE Part Number APE-3500-1500
Package 115V base package
Operating Voltage 110–125VAC
Power 2,450 watts
Heating Upper and lower heating
Thermal Process Controlled ramp-and-soak profile
Chassis Full stainless steel
Impact Rating 20G
RoHS Applications Supported
Dimensions 21 × 10 × 10 in (L × W × H)
Weight 24 lb

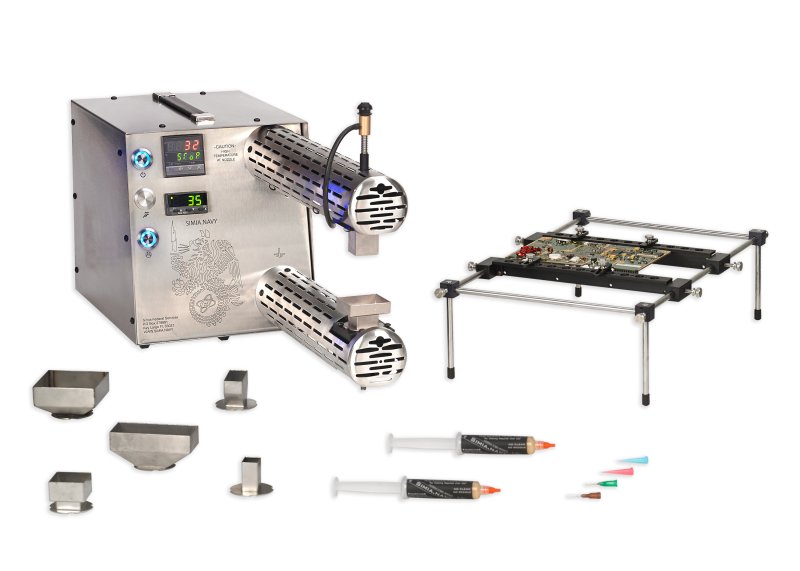

Base Package Includes

  • Trident 115V base unit with upper and lower heating

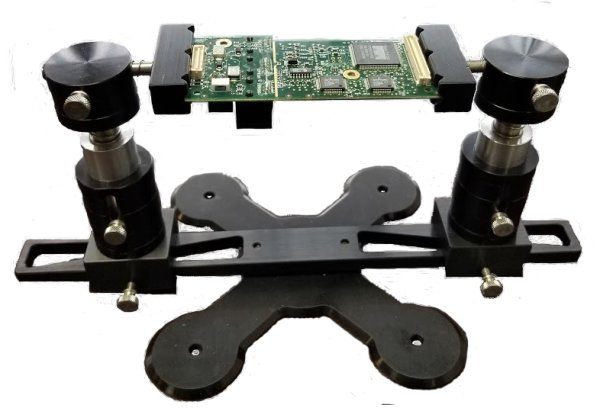

  • 8-inch freestanding PCB holder
  • Three rework nozzles
  • Two 10cc syringes of no-clean rework flux
  • Foot pedal
  • Power cord
  • Product manual

Base-package notice: This listing is for the Trident 115V base package. A camera, monitor, or other accessories are not included unless specifically stated in the order configuration.

Need Help Configuring Your Trident System?

Speak with an APE application specialist about voltage, component, nozzle, board-holder, camera, or monitor requirements.
