Complete HD Imaging Station

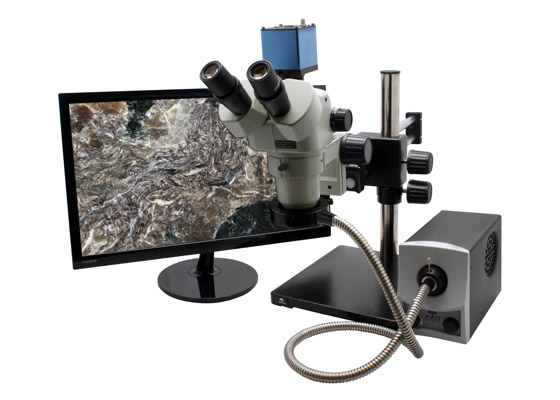

SPZV-50 True Trinocular Stereo Zoom Microscope
A complete professional inspection station combining true trinocular stereo viewing with a 1080p HD camera, built-in SD-card recording, a 22-inch HD monitor, fiber-optic illumination, and a versatile double-arm boom stand.
Part #26800B-382 | HD Camera + 22-Inch Monitor Included
Eyepiece and Monitor Viewing
Operators can view three-dimensional images through the binocular eyepieces while the trinocular port sends a two-dimensional live image to the included 22-inch HD monitor. The included 1080p camera has a built-in SD card for capturing inspection images without a separate computer.
Positioning for Large Work Areas
The double-arm boom stand glides smoothly over large objects and circuit boards. Its heavy metal base provides stability, while the tiltable arbor lets the microscope body be positioned for a comfortable viewing angle. Fiber-optic illumination and an LED ring light deliver bright, controllable light at the work area.
Key Features
✓ True trinocular microscope body
✓ 6.7×–50× optical magnification
✓ 22×–173× on-screen magnification
✓ 1080p HD camera with built-in SD card
✓ 22-inch HD monitor included
✓ Double-arm boom stand
✓ Fiber-optic illuminator with ring light
Specifications
| Part Number |
26800B-382 |
| Microscope Body |
True trinocular |
| Eyepieces |
10× wide field, FN 23, inclined at 45° |
| Objective Lens |
0.67×–5.0× |
| Optical Magnification |
6.7×–50×; 3.35×–200× with optional lenses |
| On-Screen Magnification |
22×–173× |
| Working Distance |
108 mm / 4.25 in |
| Zoom Ratio |
7.46:1 |
| Field of View |
34.3–3.6 mm |
| Interpupillary Distance |
52–75 mm |
| Diopter Adjustment |
±7.2D on both eyepiece tubes |
| Camera |
1080p HD camera with built-in SD card |
| Monitor |
22-inch HD monitor |
| Stand |
Double-arm boom stand, Part #26800B-534 |
| Illumination |
Fiber-optic illuminator with ring light |
| Base Dimensions |
285 × 260 × 18 mm |
| Stand Height |
380 mm pole with 225 mm extension post |
| System Weight |
75 lb |
| Warranty |
Minimum 12-month manufacturer’s warranty |
Package Includes
| Microscope |
SPZV-50 true trinocular microscope body |
| Boom Stand |
Double-arm boom stand, Part #26800B-534 |
| Focus Mount |
Focus mount with E-arm, Part #26800B-518 |
| Illuminator |
Fiber-optic illuminator, Part #26200A-300 |
| Ring Light |
Ring light, Part #26200A-402, with adapter Part #26800B-460 |
| HD Camera |
HD camera with built-in SD card, Part #26100-253HD |
| HD Monitor |
22-inch HD monitor, Part #26700-406 |
| Accessories |
Dust cover, rubber eye guards, and tension-control pin |
Optional Accessories
| Auxiliary Lenses |
0.75×, 1.6×, and 2× |
| Eyepieces |
10×, 15×, 20×, and 10× with scale |
| Optical Protection |
Protective lens cover |
HD Camera and 22-Inch Monitor Included
Part #26800B-382 is supplied as a complete imaging station. The 1080p HD camera, built-in SD-card capability, and 22-inch HD monitor are included—no separate camera or display package is required.
