Large-Area Stereo Inspection

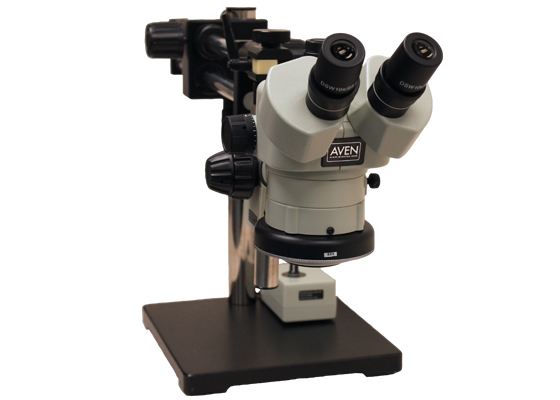

SPZ-50 Stereo Zoom Binocular Microscope
A professional stereo inspection system combining high-grade zoom optics with a double-arm boom stand and a securely integrated 60-LED ring light. The extended stand supports smooth positioning across large circuit boards, assemblies, and workpieces.
Part #26800B-369 | Double-Arm Boom Stand | Integrated LED Ring Light
Secure Integrated Illumination
The 60-LED ring light is integrated into the focus mount instead of attached as a separate screw-on accessory. This one-piece arrangement helps prevent a loosened light from dropping onto the product being inspected while delivering shadow-reducing 5600K illumination rated at 35,000 lux.
Extended Positioning Range
The double-arm boom stand glides across large inspection areas, while its tiltable arbor allows the microscope to be angled for operator comfort. Continuous 6.7×–50× zoom, a 108 mm working distance, and coarse-and-fine focusing support detailed inspection and precision work.
Key Features
✓ Continuous 6.7×–50× zoom magnification
✓ Double-arm boom stand with tiltable arbor
✓ Integrated 60-LED ring light
✓ Variable illumination up to 35,000 lux
✓ 108 mm working distance
✓ Coarse and fine focus adjustment
✓ Multi-coated Greenough optics
Specifications
| Part Number |
26800B-369 |
| Microscope Body |
Binocular |
| Eyepieces |
10× wide field, FN 23, inclined at 45° |
| Objective Lens |
0.67×–5.0× |
| Magnification |
6.7×–50×; up to 200× with optional optics |
| Working Distance |
108 mm / 4.25 in |
| Interpupillary Distance |
52–75 mm |
| Diopter Adjustment |
±7.2D on both eyepiece tubes |
| Optical System |
Greenough, multi-coated optics |
| Illumination |
Integrated 60-LED ring light, 5600K white, 35,000 lux |
| Lighting Control |
Variable dimmer control |
| Stand |
Double-arm boom stand with tiltable arbor |
| Base Dimensions |
285 × 260 × 18 mm |
| Stand Height |
380 mm pole with 225 mm extension post |
| System Weight |
75 lb |
| Warranty |
Minimum 12-month manufacturer’s warranty |
Package Includes
| Microscope |
SPZ-50 stereo zoom binocular microscope body |
| Boom Stand |
Double-arm boom stand with arbor, Part #26800B-535 |
| Lighting and Focus |
Integrated LED ring light with focus mount, Part #26200B-207 |
| Included Accessories |
Dust cover, rubber eye guards, and tension-control pin |
Optional Accessories
| Auxiliary Lenses |
0.75×, 1.6×, and 2× |
| Eyepieces |
10×, 15×, 20×, and 10× with scale |
| Optical Protection |
Protective lens cover |
Integrated Lighting Helps Protect the Workpiece
The ring light is securely incorporated into the focus mount instead of hanging from the microscope as a separate screw-on accessory. This helps eliminate the risk of a loose light dropping onto the item being inspected.
