Deluxe Multi-Tool Rework System

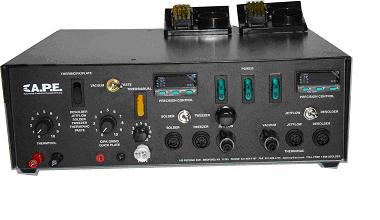

APE SMD-2000M Deluxe 220V Repair and Desolder System
The SMD-2000M is a self-contained benchtop system for SMT and plated-through-hole repair, desoldering, component handling, and production support. The Deluxe package combines hot-air reflow, soldering, desoldering, resistive tweezers, thermal parting, and vacuum pick-and-place tools in one comprehensive workstation.
Part #6200-2009 | 220V | Deluxe Package
Complete Benchtop Repair Capability
Designed for circuit-board repair and manufacturing environments, the SMD-2000M supports both surface-mount and plated-through-hole work. Its broad tool selection allows technicians to move between component reflow, solder removal, soldering, thermal removal, and component placement without assembling separate stations.
Hot-Air Reflow and Desoldering
The standard package includes an SMD hot-air jet reflow tool and an anti-static EX-1700 sensor desolder handpiece. Together, they provide dedicated tools for surface-mount heating and controlled solder extraction.
Precision Component Handling
Resistive tweezers with tips and a thermal parting unit expand the system's component-removal capabilities. The included SMD vacuum pick-and-place tool supports accurate handling and positioning of small components.
Organized Hands-Free Workflow
A dual holder assembly keeps working tools organized, while the electric foot pedal provides convenient hands-free activation. Cleaning equipment, manuals, a cushion-grip extractor, and the 220V power cord complete the package.
Key Features
- ✓ Self-contained 220V workstation
- ✓ SMT and PHT circuit-board repair
- ✓ Hot-air jet reflow tool
- ✓ Anti-static desolder handpiece
- ✓ SMT/PHT soldering iron
- ✓ Resistive tweezers with tips
- ✓ Thermal parting unit
- ✓ Vacuum pick-and-place tool
- ✓ Hands-free electric foot pedal
- ✓ Dual holder and cleaning system
Product Specifications
| Manufacturer |
APE |
| Model |
SMD-2000M Deluxe |
| APE Part Number |
6200-2009 |
| Input Voltage |
220V |
| System Type |
Self-contained SMT/PHT repair and desolder system |
| Desolder Handpiece |
EX-1700 anti-static sensor handpiece, 24V, 5-wire |
| Soldering Iron |
SMT/PHT iron with tip, 24V, 5-wire |
| Warranty |
Minimum 12 months |
Deluxe Package Includes
1700-0060
SMD hot-air jet reflow tool
1700-6700
EX-1700 anti-static desolder handpiece
2200-0130
Resistive tweezers with tips
2900-0132
Thermal parting unit
3550-0602
Dual holder assembly
8000-0100
220V power cord
5000-8404
Electric foot pedal with plug
6000-2500
SMD vacuum pick-and-place tool
6200-6200
Operation and maintenance manuals
6700-0286
Cushion-grip desolder extractor
6730-3803
MTD cleaning unit assembly
6910-2700
SMT/PHT soldering iron with tip
Available Optional Accessories
Compatible options include conductive tweezers, thermal stripper, Therm-Tool Kit, Thermovac tool, thermal quad tweezers, reflow soldering kit, solder-paste accessories, Quick Plate Kit, Cirk Grind system, drill assortment, dispenser kit, and additional holders. Contact APE to confirm compatibility and current part numbers.
