Pen Type Microscope 50x w/LED Light & Scale | Part#26800C-553

(0)
Write review
 In stock
$55.69
Product Overview
Delivery and returns
  • Model
  • 26800C-553

Description:

Pocket Inspection Microscope

50× Pen Type Microscope with LED Light & Scale

APE part 26800C-553 is a compact 50× inspection microscope with a bright LED light, pocket clip, and measurement scale etched into the eyepiece.

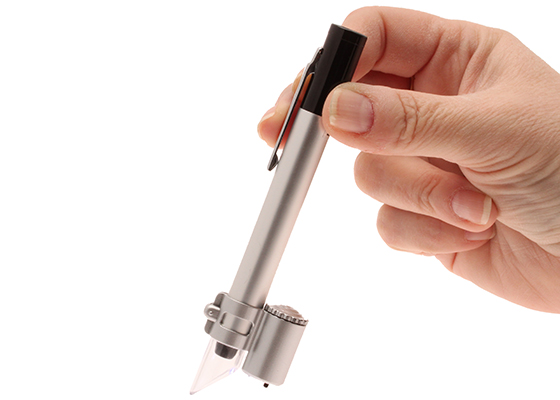

APE 26800C-553 pen type microscope 50x with LED light and scale

Product Overview

This precision pen style microscope is slim enough to carry in a pocket. Its pocket clip keeps it close at hand, while the built-in LED illuminates the area being viewed. A beveled opening helps collect and focus light.

The eyepiece has an etched scale with 0.05 mm graduations across a 0–2 mm measurement range. APE describes the viewed image as distortion free and inverted. The microscope is 5 in (127 mm) long and has a 1/4 in outside-diameter eyepiece.

Features

  • 50× magnification for detailed close inspection
  • Bright LED light and convenient pocket clip
  • Beveled opening helps gather and focus light
  • Eyepiece scale marked in 0.05 mm increments
  • Compact pen design for inspection in electronics, medical, printing, and jewelry work

Applications

  • Examination of laboratory specimens before sample preparation
  • Printed circuit board inspection, including fine cracks
  • Dot measurement in printing
  • Gemstone examination

Specifications

APE Part Number 26800C-553
Magnification 50×
Field of View 2.0 mm
Scale Graduations 0.05 mm
Measurement Range 0–2 mm
Length 5 in (127 mm)
Eyepiece Outside Diameter 1/4 in
Weight 0.1 lb
