Flexible Stereo Inspection

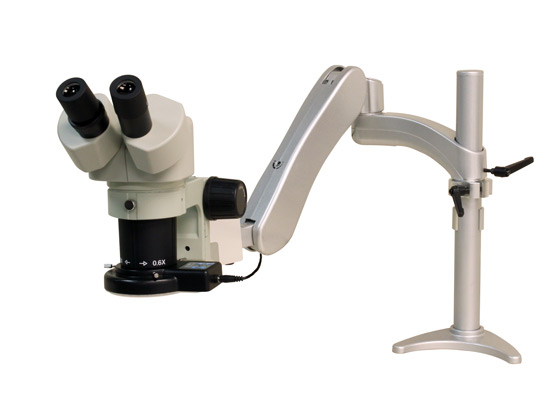

NSW-30 Stereo Binocular Microscope
A professional two-magnification microscope system with an articulating LW stand for flexible positioning across a large work area. The included 60-LED ring light provides adjustable brightness and independent four-sector lighting control.
Part #26800B-361 | 10× and 30× Magnification | LW Articulating Stand
Two Magnifications for Inspection
The NSW-30 provides 10× and 30× magnification through 10× wide-field eyepieces and 1×/3× objectives. Unibody construction and multi-coated Greenough optics support clear three-dimensional viewing for electronics inspection, laboratory work, and quality control.
Articulating Arm and Sector Lighting
The lightweight LW articulating arm lifts, pivots, extends, and retracts to cover a large work area or move the microscope out of the way. The 60-LED ring light offers seven brightness levels and separately adjustable four-sector illumination to control glare and shadows.
Key Features
✓ 10× and 30× magnification
✓ 107 mm working distance
✓ LW articulating arm with table clamp
✓ E-arm focus mount included
✓ 60-LED ring light
✓ Seven brightness levels and four-sector control
✓ Multi-coated Greenough optics
Specifications
| Part Number |
26800B-361 |
| Microscope Body |
Binocular |
| Eyepieces |
10× wide field, FN 23, inclined at 45° |
| Objective Lenses |
1× and 3× |
| Magnification |
10× and 30× |
| Working Distance |
107 mm / 4.21 in |
| Field of View |
23 mm at 10×; 7.6 mm at 30× |
| Interpupillary Distance |
52–75 mm |
| Diopter Adjustment |
±7.2D in the left eyepiece tube |
| Optical System |
Greenough, multi-coated optics |
| Illumination |
60 white LEDs with seven-step brightness and four-sector control |
| Stand |
LW articulating arm with clamp and E-arm |
| Stand Height |
315 mm / 12.4 in |
| Weight |
15 lb |
| Warranty |
Minimum 12-month manufacturer’s warranty |
Package Includes
| Microscope |
NSW-30 stereo binocular microscope body |
| Focus Mount |
E-arm, Part #26800B-518 |
| Stand |
LW articulating arm stand, Part #26800B-555 |
| LED Ring Light |
LED ring light, Part #26800B-211 |
| Ring-Light Adapter |
Adapter, Part #26800B-480 |
| Included Accessories |
Dust cover, rubber eye guards, and tension-control pin |
Optional Accessories
| Auxiliary Lenses |
0.5×, 0.75×, and 1.6× |
| Eyepieces |
10×, 15×, 20×, and 10× with scale |
| Optical Protection |
Protective lens cover |
Flexible Arm and Directional Lighting Included
Part #26800B-361 includes the NSW-30 microscope, LW articulating stand, E-arm, ring-light adapter, and 60-LED ring light with independent four-sector control.
