Mighty Vue Magnifying Lamp-LED ESD Safe | Part#26505-ESL

(0)
Write review
 In stock
$410.30
Product Overview
Delivery and returns
  • Model
  • 26505-ESL

Description:

ESD-Safe LED Magnifying Lamp

Mighty Vue Magnifying Lamp – LED, ESD Safe

Mighty Vue magnifying lamp with 36 high-powered LEDs (18 per side), a 3-diopter lens, a 32-inch spring-balanced arm, and ESD-safe housing.

Part #26505-ESL  |  1.75× Magnification  |  115 VAC

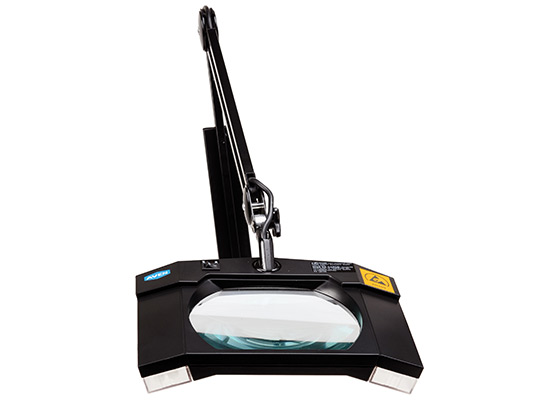

Mighty Vue LED ESD-safe magnifying lamp part 26505-ESL

Large, Clear Viewing Area

The large 7 × 6-inch, 3-diopter (1.75×) lens provides crystal-clear, distortion-free magnification. Its rectangular viewing area allows comfortable viewing with both eyes. The lens is mounted in an engineered, mar-resistant ESD-safe plastic housing.

Dual LED Illumination

Dual light sources illuminate the viewing area from both sides for shadow-free magnification. The lamp uses 36 high-intensity, energy-efficient white SMD LEDs, with 18 on each side, rated for over 22,000 hours of use.

Adjustable Arm and Mounting

The internal spring-balanced arm has a 32-inch reach and holds its position. A heavy-duty metal mounting clamp with a 2.5-inch opening is included.

Power and Warranty

The black ESD-safe lamp operates at 115 VAC and includes a 5-foot power cord. The warranty is 1 year and excludes LEDs.

Key Features

  • ✓ Durable ESD-safe, mar-resistant plastic housing
  • ✓ Large 7 × 6-inch lens with 1.75× magnification (3 diopter)
  • ✓ 36 high-powered, energy-efficient white SMD LEDs for shadow-free illumination
  • ✓ 32-inch spring-balanced arm stays in any position
  • ✓ Heavy-duty metal mounting clamp with a 2.5-inch opening

Product Specifications

Part Number 26505-ESL
Magnification 1.75× (3 diopter)
Lens Size 7 × 6 in
Adjustable Arm Length 32 in
Color / Housing Black, ESD-safe, mar-resistant plastic
Lighting 36 white SMD LEDs (18 per side)
LED Rated Life Over 22,000 hours
Operating Voltage 115 VAC
Mounting Clamp Opening 2.5 in
Power Cord Length 5 ft
Weight 10 lb
Warranty 1 year (excludes LEDs)
Listed Accessory 26501-SLA Swing-Away Lens – 5 diopter (2.25×)

Included Items

Mighty Vue LED ESD-safe magnifying lamp
Heavy-duty metal mounting clamp
5-foot power cord

Need help selecting a magnifying lamp?

Contact APE about your inspection needs or the listed 26501-SLA swing-away lens accessory.

Call 800-822-8646
