Mighty Vue Magnifying Lamp-LED 5D ESD Safe | Part#26505-ESL-XL5

(0)
Write review
 In stock
$315.69
Product Overview
Delivery and returns
  • Model
  • 26505-ESL-XL5

Description:

ESD-Safe LED Magnifying Lamp

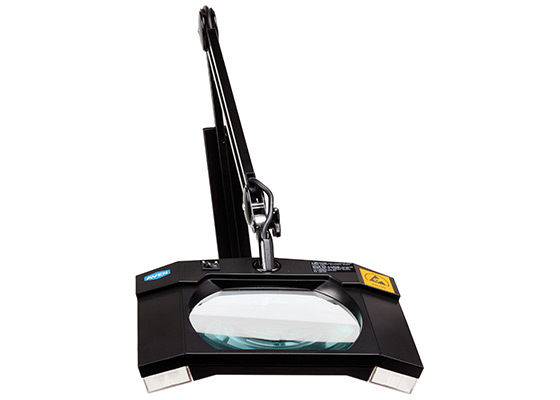

Mighty Vue Magnifying Lamp – LED, 5D, ESD Safe

Mighty Vue magnifying lamp with 36 high-powered LEDs (18 per side), a 5-diopter lens, a 32-inch spring-balanced arm, and ESD-safe housing.

Part #26505-ESL-XL5  |  2.25× Magnification  |  115 VAC

Mighty Vue LED ESD-safe magnifying lamp part 26505-ESL-XL5

Large, Clear Viewing Area

The large 7 × 6-inch, 5-diopter (2.25×) lens provides crystal-clear, distortion-free magnification. Its rectangular viewing area allows comfortable viewing with both eyes. The lens is mounted in an engineered, mar-resistant ESD-safe plastic housing.

Dual LED Illumination

Dual light sources illuminate the viewing area from both sides for shadow-free magnification. The lamp uses 36 high-intensity, energy-efficient SMD LEDs, with 18 on each side, rated for a minimum of 20,000 hours of use.

Adjustable Arm and Mounting

The internal spring-balanced arm has a 32-inch reach and holds its position. A heavy-duty metal mounting clamp with a 3.5-inch opening is included.

Power and Warranty

The black ESD-safe lamp operates at 115 VAC and includes a 5-foot power cord. The warranty is 1 year.

Key Features

  • ✓ Durable ESD-safe, mar-resistant plastic housing
  • ✓ Large 7 × 6-inch lens with 2.25× magnification (5 diopter)
  • ✓ 36 high-powered, energy-efficient SMD LEDs for shadow-free illumination
  • ✓ 32-inch spring-balanced arm stays in any position
  • ✓ Operates at 115 VAC
  • ✓ Heavy-duty metal mounting clamp with a 3.5-inch opening

Product Specifications

Part Number 26505-ESL-XL5
Magnification 2.25× (5 diopter)
Lens Size 7 × 6 in
Adjustable Arm Length 32 in
Color / Housing Black, ESD-safe, mar-resistant plastic
Lighting 36 SMD LEDs (18 per side)
LED Rated Life Minimum 20,000 hours
Operating Voltage 115 VAC
Mounting Clamp Opening 3.5 in
Power Cord Length 5 ft
Weight 10 lb
Warranty 1 year
Listed Accessory 26501-SLA Swing-Away Lens – 5 diopter (2.25×)

Included Items

Mighty Vue LED ESD-safe magnifying lamp
Heavy-duty metal mounting clamp
5-foot power cord

Need help selecting a magnifying lamp?

Contact APE about your inspection needs or the listed 26501-SLA swing-away lens accessory.
