Inspect, analyze & measure with ease on your PC
Compact and handy. Capture images and videos.

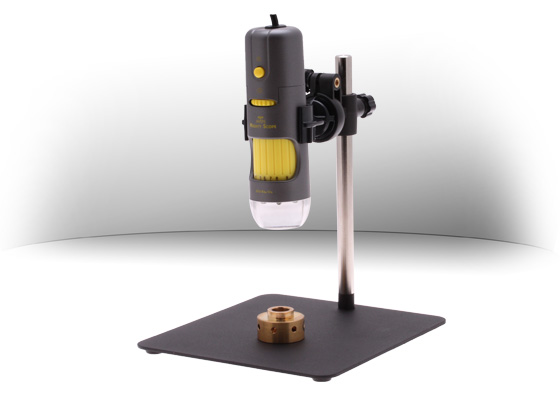

The Mighty Scope produces crisp and bright images and videos. Magnification is easily controlled by moving closer to the object for higher magnification and away from the object for lower magnification. It can be used mounted on the stand (included) or handheld.
The Mighty Scope has a large focus control knob for easy focusing, built-in LED brightness control wheel for instant control of lighting, and a built-in image capture button. The included software is feature packed. It can capture, manipulate, annotate and measure allowing you to instantly communicate your findings with your coworkers.
The Mighty Scope is used extensively in science and engineering work, dermatology, detailed repair, assembly and quality control hobbies & collecting (coin, stamp, watch, jewelry, etc.), law enforcement (counterfeit ID, crime lab, etc.), entertainment and much more.
Optional stands available.
- Easy to use 6-LED compact & handy digital microscope with a USB interface
- High resolution magnification at your fingertips
- Active Pixel Technology produces sharp images and accurate color reproduction
- LED's can be turned on or off with brightness control wheel on the body
- Includes measurement software and adjustable metal stand with angle and tilt adjustment
| Mighty Scope 1.3M Digital Microscope |
| Image Sensor |
1/4” Color CMOS |
| Effective Pixels |
1.3M |
| Signal Output |
USB 2.0 |
| Video Format |
AVI |
| Frames Per Second |
640 x 480: 30fps
1280 x 1024 : 15fps |
| Magnification Based on 17" Monitor |
Resolution: 640 x 480 | Max. ~ 95X
Resolution: 1024 x 768 | Max. ~ 150X |
| Gain Control |
Automatic |
| Snap Shot Mode |
Hardware & Software controls |
| White Balance |
Automatic |
| Power Source |
5VDC through USB port |
| O/S |
Windows XP, Vista & 7
Mac OSX 10.6 or above |
| Power Consumption |
110mA (AVG) |
| LED Lighting |
6 Brightness controllable LEDs |
| Working Distance |
At 10x, 112mm
At 20x, 42mm
At 30x, 19mm
At 40x, 8.5mm |
| Dimensions |
Length: 111mm
Diameter: 34.5mm
Cable length: 1.8M (6ft)
Metal Stand: Base: 200mm x 200mm
Pole Height: 300mm |
| Weight |
113g | 0.25lb |
| Package Contents |
Mighty Scope 1.3M
Metal Stand
Image capture software
Manual |
| Warranty |
The Mighty Scope 1.3M USB Digital Microscope comes with a two year warranty against any manufacturing defects. |
| 30-Day Money-Back Guarantee |
We want you to be fully satisfied with every item that you purchase from Aven. If you are not satisfied with an item that you have purchased, you may return the item within 30 days of delivery for a full refund of the purchase price. Items must be returned in original packing and condition. RMA # is required. |
