Funnelets 0.066" I.D. 50 pack | Part#2000-1083P50

(0)
Write review
 In stock
$52.25
Product Overview
Delivery and returns
  • Model
  • 2000-1083P50

Description:

PCB Repair Funnelets

Funnelets 0.066" ID – 50 Pack

Funnelets with a minimum inner diameter of 0.066 inch, supplied in an approximate 50-pack. APE part number 2000-1083P50.

Part #2000-1083P50  |  0.066 in ID  |  Approx. Qty. 50

Funnelets 0.066-inch ID, APE part 2000-1083P50, 50 pack

Product Overview

This approximate 50-pack contains FUNNELET-style funnelets with a 0.078-inch outside diameter and a minimum inner diameter of 0.066 inch. Listed board thickness is 0.093 inch (2.362 mm), 3/32 inch.

Quantity note: Counts of eyelets and funnelets are approximate, determined by scale, with a tolerance of ±3 pieces.

Product Details

  • ✓ Minimum inner diameter: 0.066" (1.676 mm)
  • ✓ Outside diameter: 0.078" (1.981 mm)
  • ✓ Range style: FUNNELET
  • ✓ Approximate 50-pack (±3 pieces)

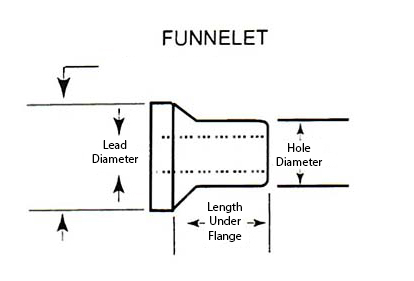

Product Specifications

Product Funnelets 0.066" ID
APE Part Number 2000-1083P50
Outside Diameter 0.078" (1.981 mm)
Length Under Flange 0.115" (2.920 mm)
Flange Diameter at Pierce 0.110" (2.794 mm)
Minimum Inner Diameter 0.066" (1.676 mm)
Range Style FUNNELET
Board Thickness 0.093" (2.362 mm), 3/32"
Package Quantity Approximately 50; scale-counted, ±3 pieces

Need help confirming compatibility?

Contact APE to confirm the correct funnelet size for your circuit board repair application.
