Funnelets 0.026" I.D. 500 pack | Part#2000-0025P500

(0)
Write review
 In stock
Call for Price
Product Overview
Delivery and returns
  • Model
  • 2000-0025P500

Description:

PCB Repair Funnelets

Funnelets 0.026" ID – 500 Pack

Funnelets with a minimum inner diameter of 0.026 inch, supplied in an approximate 500-pack. APE part number 2000-0025P500.

Part #2000-0025P500  |  0.026 in ID  |  Approx. Qty. 500

Funnelets 0.026-inch ID, APE part 2000-0025P500, 500 pack

Product Overview

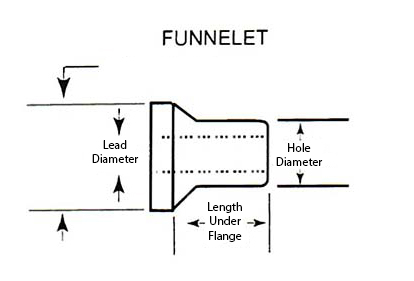

This approximate 500-pack contains FUNNELET-style funnelets with a 0.038-inch outside diameter and a minimum inner diameter of 0.026 inch. Listed board thickness is 0.031 inch (0.787 mm), 1/32 inch.

Quantity note: Counts of eyelets and funnelets are approximate, determined by scale, with a tolerance of ±3 pieces.

Product Details

  • ✓ Minimum inner diameter: 0.026" (0.6604 mm)
  • ✓ Outside diameter: 0.038" (0.9652 mm)
  • ✓ Range style: FUNNELET
  • ✓ Approximate 500-pack (±3 pieces)

Product Specifications

Product Funnelets 0.026" ID
APE Part Number 2000-0025P500
Outside Diameter 0.038" (0.9652 mm)
Length Under Flange 0.047" (1.193 mm)
Flange Diameter at Pierce 0.065" (1.651 mm)
Minimum Inner Diameter 0.026" (0.6604 mm)
Range Style FUNNELET
Board Thickness 0.031" (0.787 mm), 1/32"
Package Quantity Approximately 500; scale-counted, ±3 pieces
PACE Part Number 1347-0001

Need help confirming compatibility?

Contact APE to confirm the correct funnelet size for your circuit board repair application.
