Eyelets 0.132" I.D. (Brass Only) 50 pack | Part#2000-0053P50

(0)
Write review
 In stock
$52.25
Product Overview
Delivery and returns
  • Model
  • 2000-0053P50

Description:

Brass Only – PCB Repair Eyelets

Eyelets 0.132" ID – Brass Only – 50 Pack

Eyelets with a minimum inner diameter of 0.132 inch, supplied in an approximate 50-pack. APE part number 2000-0053P50. Brass only.

Part #2000-0053P50  |  0.132 in ID  |  Approx. Qty. 50

Eyelets 0.132-inch ID, APE part 2000-0053P50, 50 pack

Product Overview

This approximate 50-pack contains EYELET-style eyelets with a 0.152-inch outside diameter and a minimum inner diameter of 0.132 inch. Listed board thickness is 0.062 inch (1.575 mm), 1/16 inch.

Quantity note: Counts of eyelets and funnelets are approximate, determined by scale, with a tolerance of ±3 pieces.

Material note: Brass only.

Product Details

  • ✓ Minimum inner diameter: 0.132" (3.352 mm)
  • ✓ Outside diameter: 0.152" (3.860 mm)
  • ✓ Range style: EYELET
  • ✓ Approximate 50-pack (±3 pieces)
  • ✓ Brass only

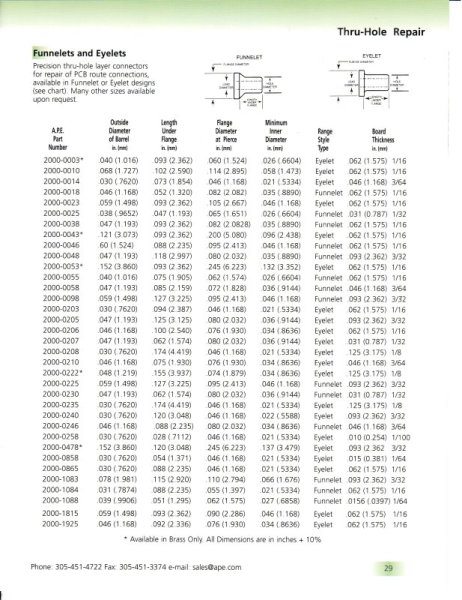

Product Specifications

Product Eyelets 0.132" ID
APE Part Number 2000-0053P50
Outside Diameter 0.152" (3.860 mm)
Length Under Flange 0.093" (2.362 mm)
Flange Diameter at Pierce 0.245" (6.223 mm)
Minimum Inner Diameter 0.132" (3.352 mm)
Range Style EYELET
Board Thickness 0.062" (1.575 mm), 1/16"
Package Quantity Approximately 50; scale-counted, ±3 pieces
Material Brass only

Need help confirming compatibility?

Contact APE to confirm the correct eyelet size for your circuit board repair application.
