Eyelets 0.026" I.D. (Brass Only) 25 pack | Part#2000-0003P25

(0)
Write review
 In stock
$27.50
Product Overview
Delivery and returns
  • Model
  • 2000-0003P25

Description:

Brass Only – PCB Repair Eyelets

Eyelets 0.026" ID – Brass Only – 25 Pack

Eyelets with a minimum inner diameter of 0.026 inch, supplied in an approximate 25-pack. APE part number 2000-0003P25; Motorola part number 0580384F02; PACE part number 1347-0039. Brass only.

Part #2000-0003P25  |  0.026 in ID  |  Approx. Qty. 25

Eyelets 0.026-inch ID, APE part 2000-0003P25, 25 pack

Product Overview

This approximate 25-pack contains EYELET-style eyelets with a 0.040-inch outside diameter and a minimum inner diameter of 0.026 inch. Listed board thickness is 0.062 inch (1.575 mm), 1/16 inch.

Quantity note: Counts of eyelets and funnelets are approximate, determined by scale, with a tolerance of ±3 pieces.

Material note: Brass only.

Product Details

  • ✓ Minimum inner diameter: 0.026" (0.6604 mm)
  • ✓ Outside diameter: 0.040" (1.016 mm)
  • ✓ Range style: EYELET
  • ✓ Approximate 25-pack (±3 pieces)
  • ✓ Brass only

Product Specifications

Product Eyelets 0.026" ID
APE Part Number 2000-0003P25
Motorola Part Number 0580384F02
PACE Part Number 1347-0039

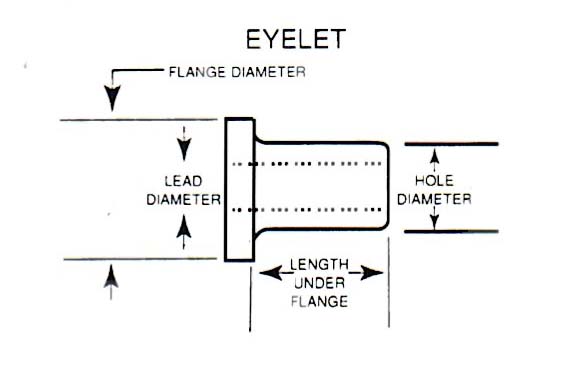

Outside Diameter 0.040" (1.016 mm)
Length Under Flange 0.093" (2.362 mm)
Flange Diameter at Pierce 0.060" (1.524 mm)
Minimum Inner Diameter 0.026" (0.6604 mm)
Range Style EYELET
Board Thickness 0.062" (1.575 mm), 1/16"
Package Quantity Approximately 25; scale-counted, ±3 pieces
Material Brass only

Need help confirming compatibility?

Contact APE to confirm the correct eyelet size for your circuit board repair application.
