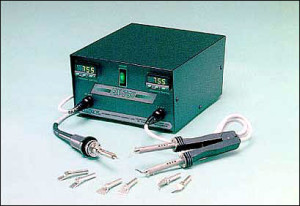

EX-755 Soldering and SMT Tweezer Station 110V

Model EX-755

Overview

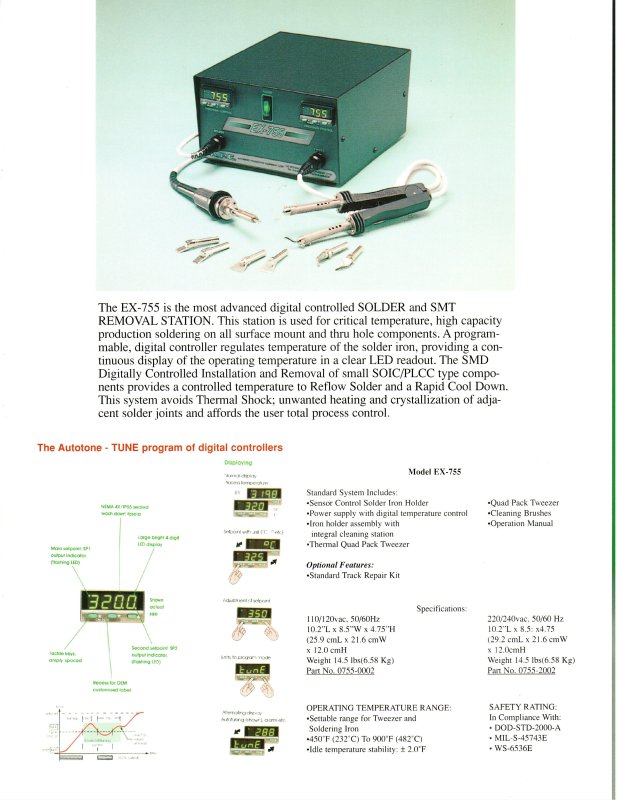

The EX-755 is the most advanced digital-controlled SOLDER and SMT REMOVAL STATION. This station is used for critical temperature, high capacity production soldering on all surface mount and thru hole components. A programmable, digital controller regulates temperature of the solder iron, providing a continuous display of the operating temperature clear LED readout. The SMD Digitally Controlled Installation and Removal of Small SOIC/PLCC type components provides a controlled temperature to Reflow Solder and a Rapid Cool Down. This system avoids Thermal Shock; unwanted heating and crystallization of adjacent solder joints and affords the user total process control.

The Autotone – TUNE program of digital controllers

Standard System Includes:

• Sensor Control Solder Iron Holder
• Power supply with digital temperature control
• Iron holder assembly with integral cleaning station
• Thermal Quad Pack Tweezer
• Quad Pack Tweezer
• Cleaning Brushes
• Operation Manual
• Optional Features:
• Standard Track Repair Kit

Model EX-755 Specifications

• 110/120 vac. 50/60 Hz
• 10.2″ L x 8.5″ W x 4.75″ H
• (25.9 cmL x 21.6 cmW x 12.0 cmH
• Weight 14.5 lbs 6.58Kg)
• Part No. 0755-0002
• 220/240 vac. 50/60 Hz
• 10.2″ L x 8.5″ W x 4.75″ H
• (29.2 cmL x 21.6 cmW x 12.0 cmH
• Weight 14.5 lbs 6.58 Kg)
• Part No. 0755-2002

Operating Temperature Range:

• Settable range for Tweezer and Soldering Iron
• 450° F (232° C) to 900° F (482° C)
• Idle temperature stability: ± 2.0° F

Safety Rating:

In Compliance With:

• DOD-STD-2000-A
• MIL-S-45743E
• WS-6536E
