USB Camera Inspection Package

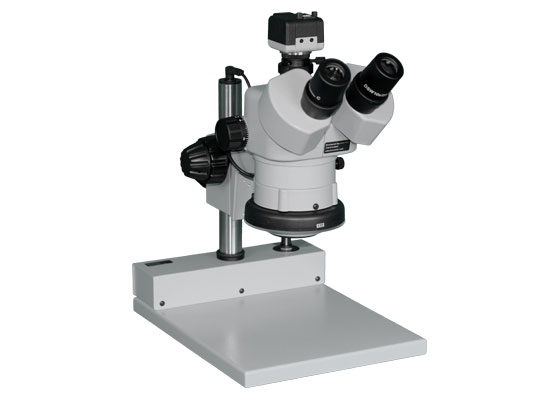

DSZV-44 Stereo Zoom Trinocular Microscope
A dual-view inspection system combining trinocular stereo optics with a Mighty Cam 5 MP USB camera, image-capture and measurement software, and an illuminated PLED pole stand for professional inspection and documentation.
Part #26800B-323 | Mighty Cam 5 MP Camera Included
Simultaneous Eyepiece and Camera Viewing
The trinocular design allows an operator to view three-dimensional images through the eyepieces while the camera port sends a two-dimensional live image to a connected computer. This supports inspection, documentation, collaboration, and operator training without interrupting eyepiece viewing.
Capture, Measure, and Share
The included Mighty Cam USB 5 MP CMOS camera and ezMeasure software allow operators to capture images on a computer for documentation, sharing, and measurement. The PLED stand adds a built-in 60-LED ring light with dimmer control plus coarse and fine focusing.
Key Features
✓ True trinocular microscope body
✓ 10×–44× zoom magnification
✓ Mighty Cam USB 5 MP CMOS camera
✓ ezMeasure capture and measurement software
✓ 60-LED ring light with dimmer control
✓ Coarse and fine focus adjustment
✓ Illuminated PLED pole stand included
Specifications
| Part Number |
26800B-323 |
| Microscope Body |
Trinocular |
| Eyepieces |
10× wide field, FN 23, inclined at 45° |
| Objective Lens |
1.0×–4.4× |
| Magnification |
10×–44×; up to 140.8× with optional optics |
| Working Distance |
90 mm / 3.54 in |
| Zoom Ratio |
3.5:1 |
| Field of View |
23–5.2 mm |
| Interpupillary Distance |
52–75 mm |
| Diopter Adjustment |
+5.6D to −7.2D on both eyepiece tubes |
| Optical System |
Greenough |
| Camera |
Mighty Cam USB 5 MP CMOS camera |
| Software |
ezMeasure image-capture and measurement software |
| Illumination |
60 white LEDs with dimmer control |
| Stand |
PLED pole stand with coarse and fine focus |
| Base Dimensions |
220 × 284 mm |
| Pole Height |
250 mm / 9.84 in |
| System Weight |
18 lb |
| Warranty |
Minimum 12-month manufacturer’s warranty |
Package Includes
| Microscope |
DSZV-44 trinocular microscope body |
| Stand |
PLED pole stand, Part #26800B-512 |
| Camera and Software |
Mighty Cam USB 5 MP CMOS camera with ezMeasure software, Part #26100-243 |
| Illumination |
Built-in 60-LED ring light with dimmer control |
| Included Accessories |
Dust cover, rubber eye guards, and tension-control pin |
Optional Accessories
| Auxiliary Lenses |
0.5×, 0.75×, and 1.6× |
| Eyepieces |
10×, 15×, 20×, and 10× with scale |
| Optical Protection |
Protective lens cover |
Mighty Cam and Software Included
Part #26800B-323 includes the Mighty Cam USB 5 MP CMOS camera and ezMeasure software. A compatible computer or external display is required for viewing the camera image; a monitor is not listed as part of this package.
