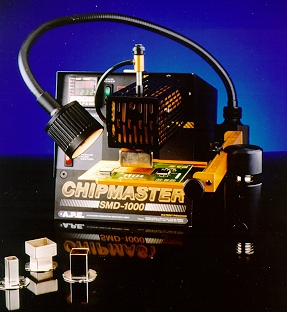

ChipMaster SMD-1000 115V 1200W | Part# 8100-1003OG

Controlled Convection Rework

Originally developed with Motorola in 1991, the ChipMaster was engineered to reproduce the controlled convection-heating profile used in production reflow ovens. Low-velocity hot air is directed at the selected component to provide focused heating while helping protect nearby parts.

BGA and SMT Applications

The 1,200-watt heating system provides the convection power required for controlled removal and replacement of BGA devices and other surface-mount packages on small and medium PCB assemblies.

Repeatable Process Control

Automatic timed process control and fuzzy-logic PID temperature regulation help technicians maintain a consistent rework cycle. The temperature display is selectable between Fahrenheit and Celsius.

Self-Contained Air and Vacuum

An internal blower supplies the system's hot-air flow, while the built-in vacuum pump supports component handling during removal and replacement. No separate shop-air source is required.

Key Features

• ✓ 1,200-watt convection heating
• ✓ BGA and SMT component rework
• ✓ Automatic timed process control
• ✓ Fuzzy-logic PID controller
• ✓ Selectable °F or °C display
• ✓ Air velocity below 12.7 CFM
• ✓ Internal blower and vacuum pump
• ✓ 8 × 8-inch PCB holder
• ✓ Three standard nozzles included
• ✓ SMT Tool Kit 8100-1097 included

Lead-Free Rework Configuration

Lead-free assemblies typically require higher reflow temperatures. A compatible APE bottom-heating system is required for lead-free rework and is not included with this configuration. Contact APE to confirm the correct heater and nozzle setup.
