Funnelets 0.034" I.D. 50 pack | Part#2000-0246P50

(0)
Write review
 In stock
$52.25
Product Overview
Delivery and returns
  • Model
  • 2000-0246P50

Description:

PCB Repair Funnelets

Funnelets 0.034" ID – 50 Pack

Funnelets with a minimum inner diameter of 0.034 inch, supplied in an approximate 50-pack. APE part number 2000-0246P50.

Part #2000-0246P50  |  0.034 in ID  |  Approx. Qty. 50

Funnelets 0.034-inch ID, APE part 2000-0246P50, 50 pack

Product Overview

This approximate 50-pack contains FUNNELET-style funnelets with a 0.046-inch outside diameter and a minimum inner diameter of 0.034 inch. Listed board thickness is 0.046 inch (1.168 mm), 3/64 inch.

Quantity note: Counts of eyelets and funnelets are approximate, determined by scale, with a tolerance of ±3 pieces.

Product Details

  • ✓ Minimum inner diameter: 0.034" (0.8636 mm)
  • ✓ Outside diameter: 0.046" (1.168 mm)
  • ✓ Range style: FUNNELET
  • ✓ Approximate 50-pack (±3 pieces)

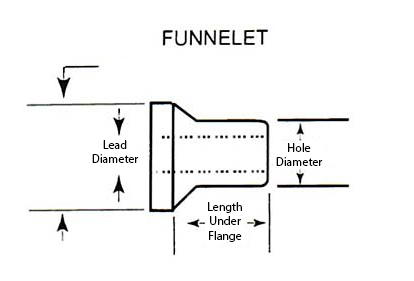

Product Specifications

Product Funnelets 0.034" ID
APE Part Number 2000-0246P50
Outside Diameter 0.046" (1.168 mm)
Length Under Flange 0.088" (2.235 mm)
Flange Diameter at Pierce 0.080" (2.032 mm)
Minimum Inner Diameter 0.034" (0.8636 mm)
Range Style FUNNELET
Board Thickness 0.046" (1.168 mm), 3/64"
Package Quantity Approximately 50; scale-counted, ±3 pieces

Need help confirming compatibility?

Contact APE to confirm the correct funnelet size for your circuit board repair application.
