Funnelets 0.046" I.D 100 pack | Part#2000-0046P100

(0)
Write review
 In stock
Call for Price
Product Overview
Delivery and returns
  • Model
  • 2000-0046P100

Description:

PCB Repair Funnelets

Funnelets 0.046" ID – 100 Pack

Funnelets with a minimum inner diameter of 0.046 inch, supplied in an approximate 100-pack. APE part number 2000-0046P100.

Part #2000-0046P100  |  0.046 in ID  |  Approx. Qty. 100

Funnelets 0.046-inch ID, APE part 2000-0046P100, 100 pack

Product Overview

This approximate 100-pack contains FUNNELET-style funnelets with a 0.060-inch outside diameter and a minimum inner diameter of 0.046 inch. Listed board thickness is 0.062 inch (1.575 mm), 1/16 inch.

Quantity note: Counts of eyelets and funnelets are approximate, determined by scale, with a tolerance of ±3 pieces.

Product Details

  • ✓ Minimum inner diameter: 0.046" (1.168 mm)
  • ✓ Outside diameter: 0.060" (1.524 mm)
  • ✓ Range style: FUNNELET
  • ✓ Approximate 100-pack (±3 pieces)

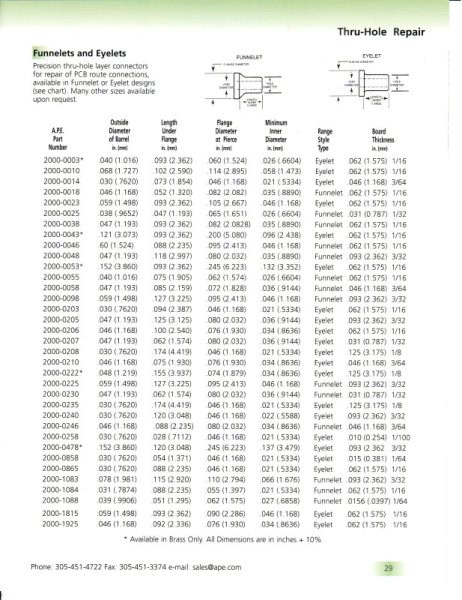

Product Specifications

Product Funnelets 0.046" ID
APE Part Number 2000-0046P100
Outside Diameter 0.060" (1.524 mm)
Length Under Flange 0.088" (2.235 mm)
Flange Diameter at Pierce 0.095" (2.413 mm)
Minimum Inner Diameter 0.046" (1.168 mm)
Range Style FUNNELET
Board Thickness 0.062" (1.575 mm), 1/16"
Package Quantity Approximately 100; scale-counted, ±3 pieces
Reference Part Number 1347-0002
Motorola Part Number 0580384F04

Need help confirming compatibility?

Contact APE to confirm the correct funnelet size for your circuit board repair application.

Call 800-822-8646
